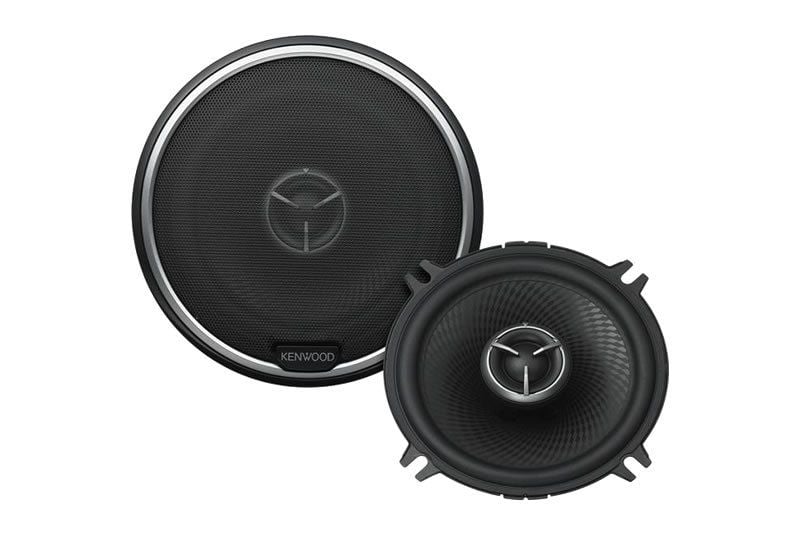

KFC-X134

Carbon-Polypropylene Hybrid Cone with Diamond Array Pattern
Peak Power: 160W
Rated Input Power: 40W
4 Ohm Impedance
Frequency Response: 74Hz - 24kHz

General Features

Diamond Array Pattern Diaphragm: Yes
Woofer
-  Woofer Size: 5-1/4 in (oversized 130mm)
-  Woofer Diaphragm: Injection P.P. Cone
-  Surround: Rubber
-  Basket: Steel (Black)
-  Magnet: Ferrite
Tweeter
-  Tweeter Size: 3/4 in (19mm)
-  Tweeter Diaphragm: Soft Dome
Dimensions (without grill)
-  Width: 5-3/16 in (132mm)
-  Height: 5-3/16 in (131mm)
-  Depth: 2-15/16 in (75.2mm)
-  Mounting Depth: 2-3/16 in (56mm)
Warranty: 2-Year

Specs

Nominal Impedance 4
Maximum Peak Power 160 W
Rated Input Power (RMS) 40 W
Sensitivity 86 dB/W at 1m
Frequency Response 74Hz - 24kHz
Crossover Frequency -
