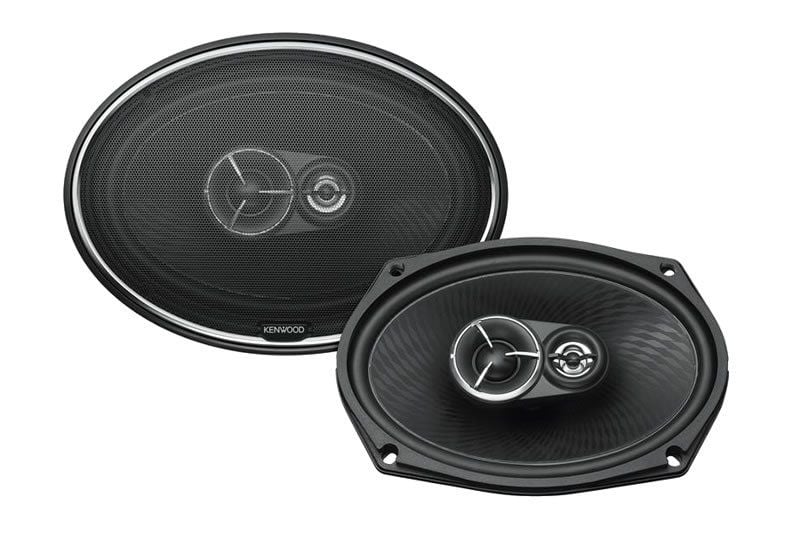

KFC-X694

The KFC-X694 features a new carbon polypropylene hybrid cone with a diamond array pattern to deliver rich, natural sound across all frequencies.
The unique diamond shapes are etched all the way to the speaker edge, helping to reduce surface waves on the speaker diaphragm, decrease vibration and suppress distortion. The result is cleaner, clearer sound reproduction.

Product Summary

Peak Power: 300W
1" Soft Dome Tweeter
CEA Standard Ready

General Features

Diamond Array Pattern Diaphragm: Yes
Woofer
-  Woofer Size: 6 x 9 in (153x229mm)
-  Woofer Diaphragm: Injection P.P. Cone
-  Surround: Rubber
-  Basket: Steel (Black)
-  Magnet: Ferrite
Mid-Range
-  Mid-Range Size: 1 in (25mm)
-  Mid-Range Diaphragm: Soft Dome
Tweeter
-  Tweeter Size: 3/4 in (19mm)
-  Tweeter Diaphragm: P.E.I. Balanced Dome
Dimensions (without grill)
-  Width: 9-5/16 in (237mm)
-  Height: 6-7/16 in (164mm)
-  Depth: 4-1/8 in (104.5mm)
-  Mounting Depth: 3-3/8 in (85mm)
Warranty: 2-Year

Specs

Nominal Impedance 3
Maximum Peak Power 300 W
Rated Input Power (RMS) 130 W
Sensitivity 89 dB/W at 1m
Frequency Response 50Hz - 25kHz
Crossover Frequency -
